Series 60 Oil Cooler Leak
09-03-2015, 11:51 (This post was last modified: 09-03-2015 12:12 by travelite.)
Post: #1
Series 60 Oil Cooler Leak

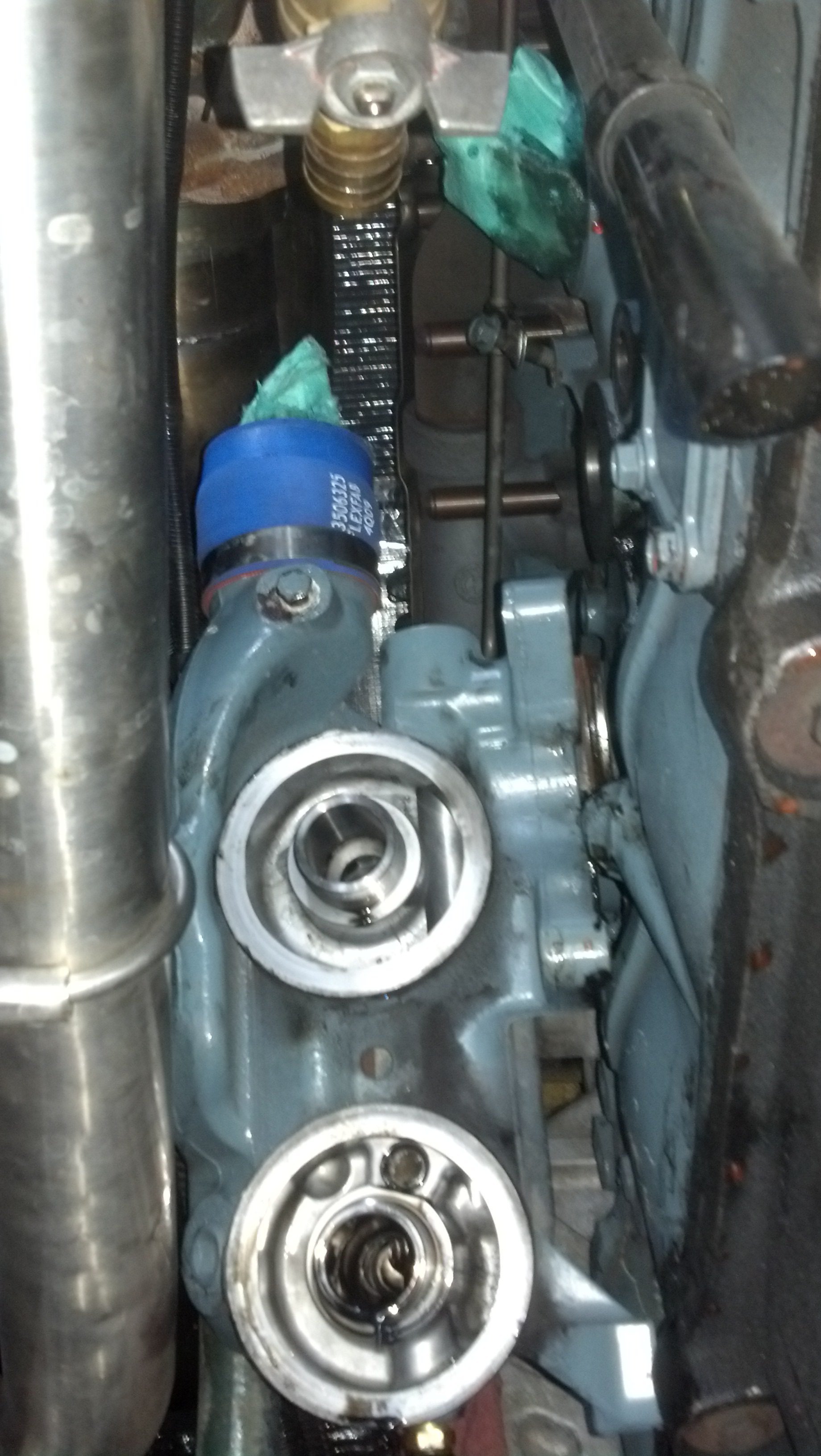

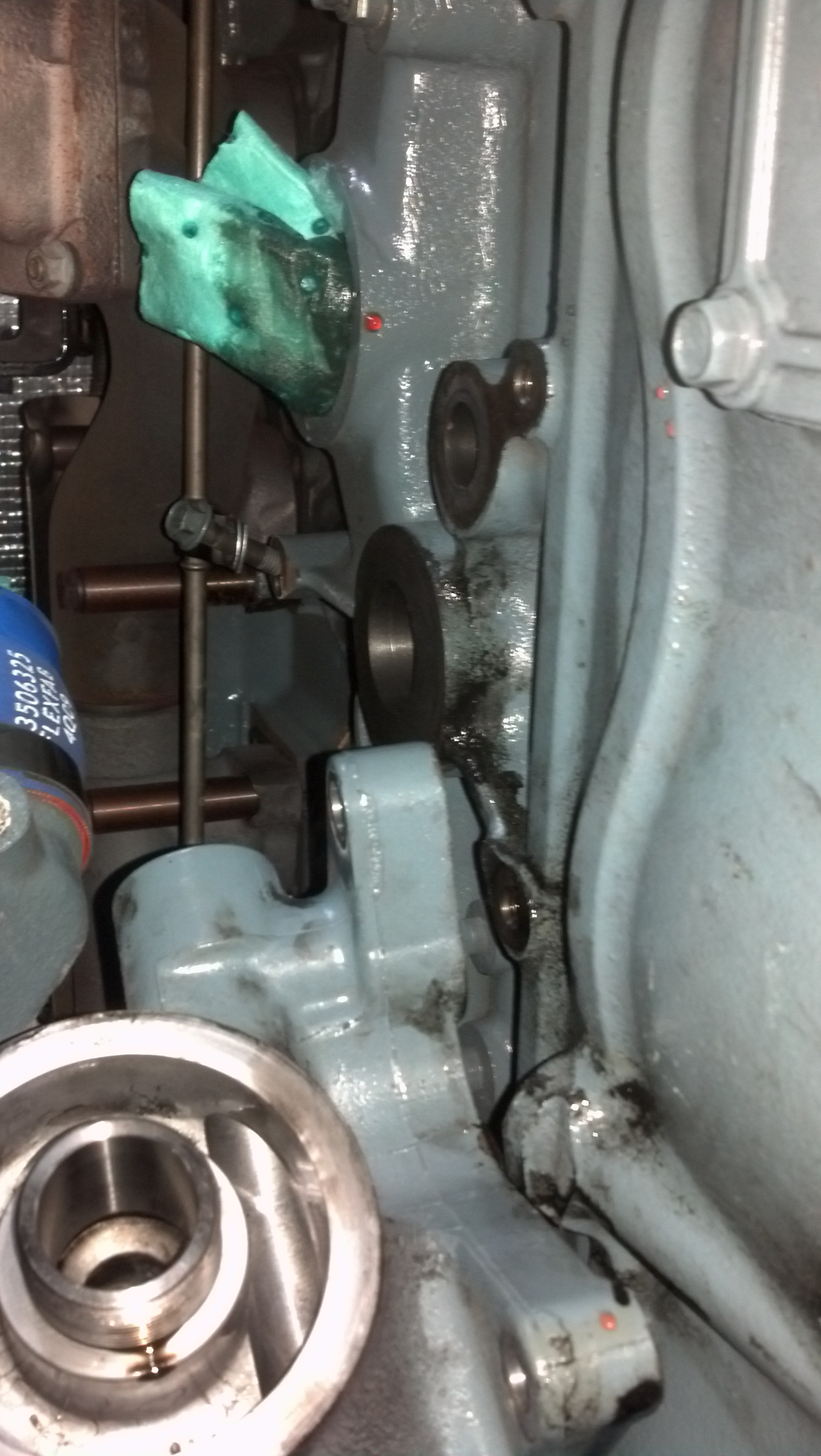

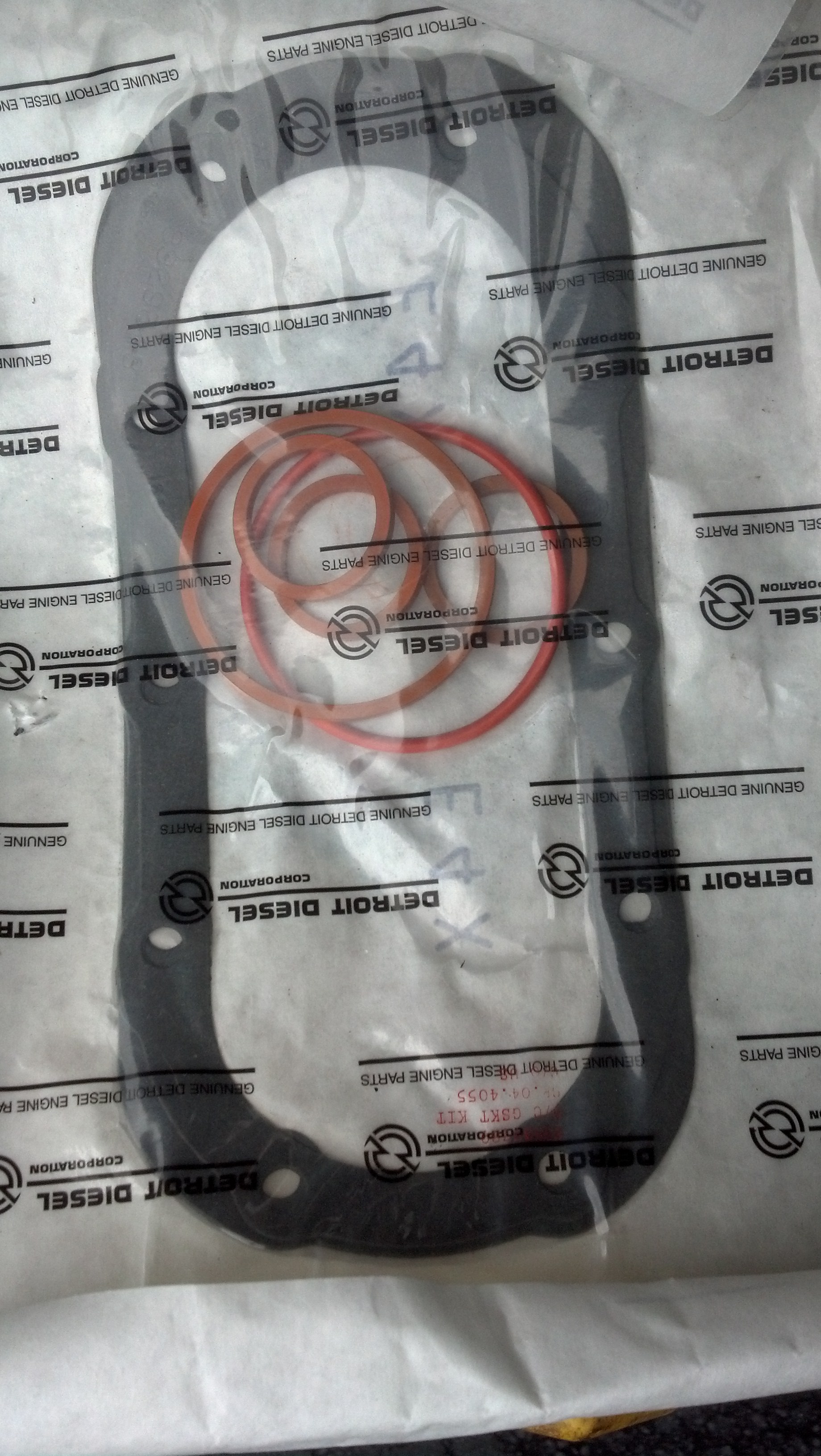

We have some folks working on their LXi rads and CAC's. Here's a "while you're in there project". I think the pics tell the story. Don't wait till after you have the CAC/Rad installed to realize your oil cooler leaks. The seals can be replaced with everything buttoned up but it's an ultra-easy job when the CAC/Rad are out.


Attached File(s) Thumbnail(s)
İmage İmage İmage İmage

david brady,
'02 Wanderlodge LXi 'Smokey' (Sold),
'04 Prevost H3 Vantare 'SpongeBob'

"I don't like being wrong, but I really hate being right"
Find all posts by this user
Like Post Quote this message in a reply
09-03-2015, 14:26
Post: #2
RE: Series 60 Oil Cooler Leak

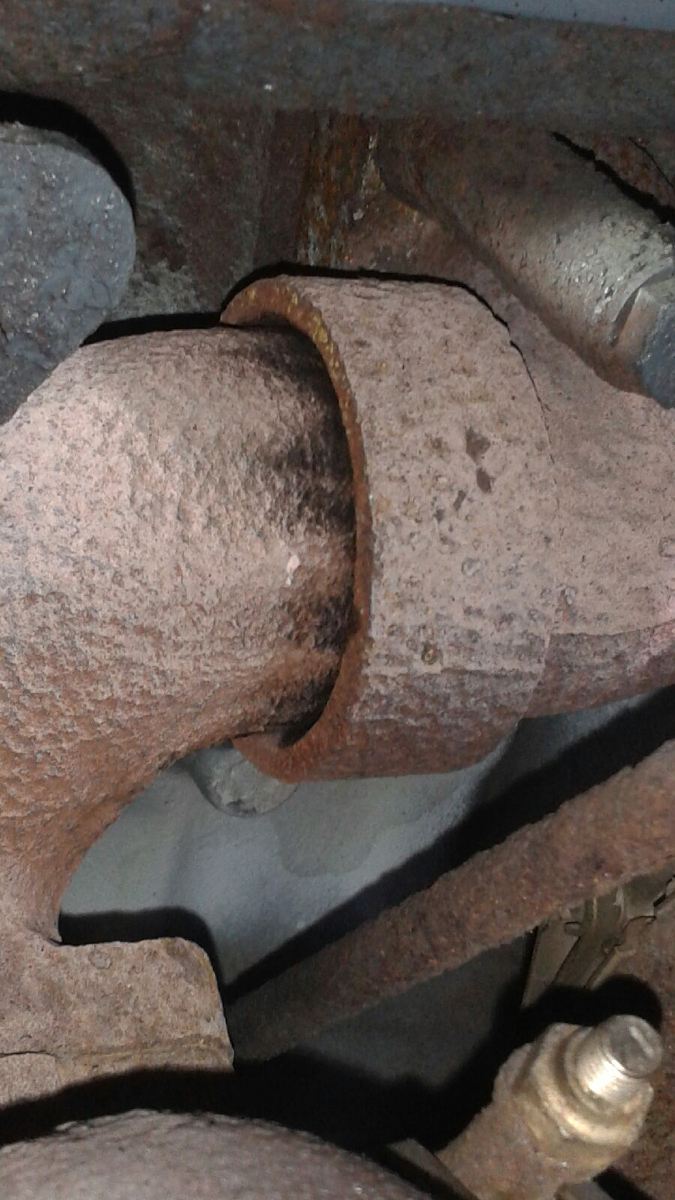

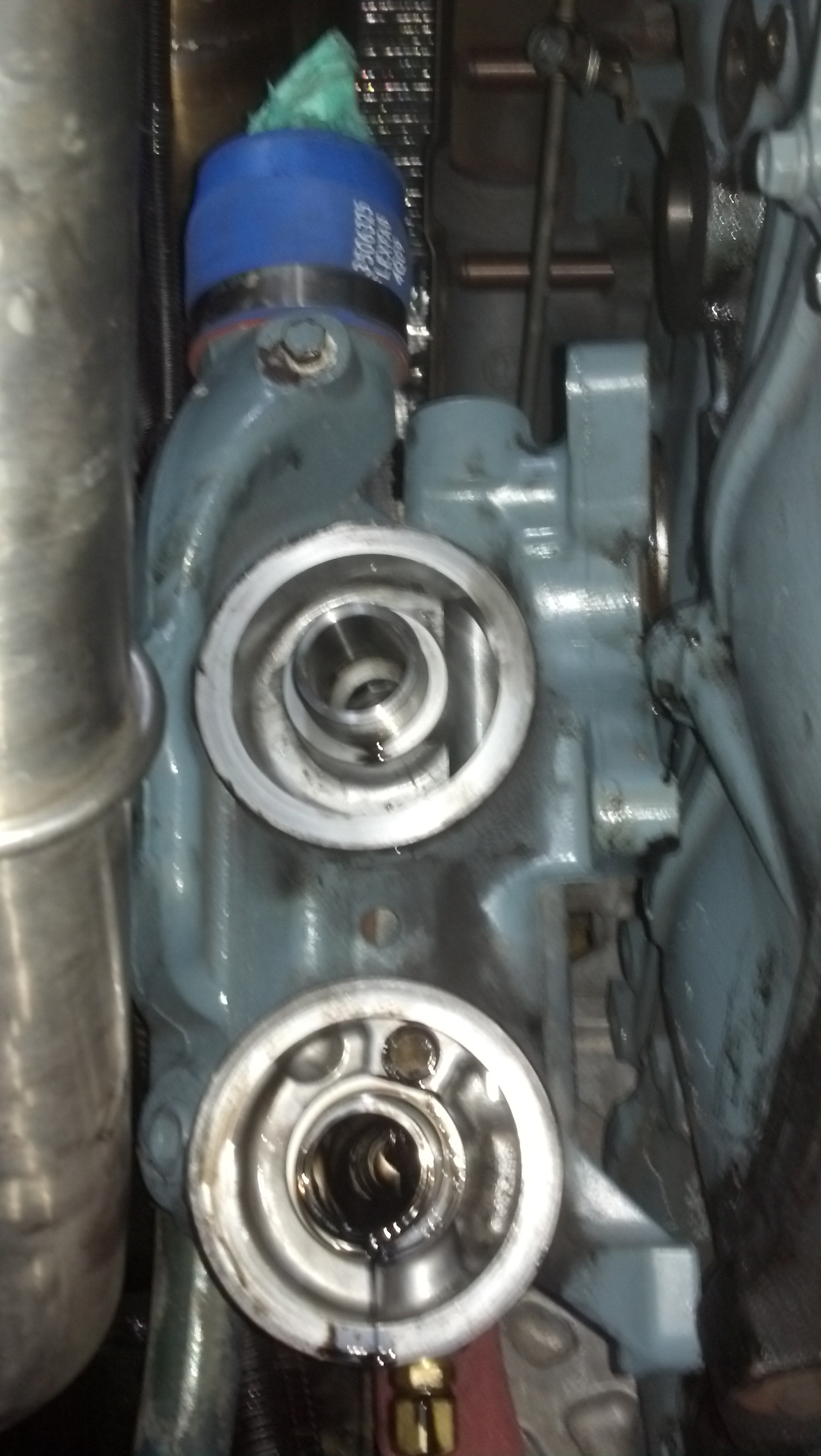

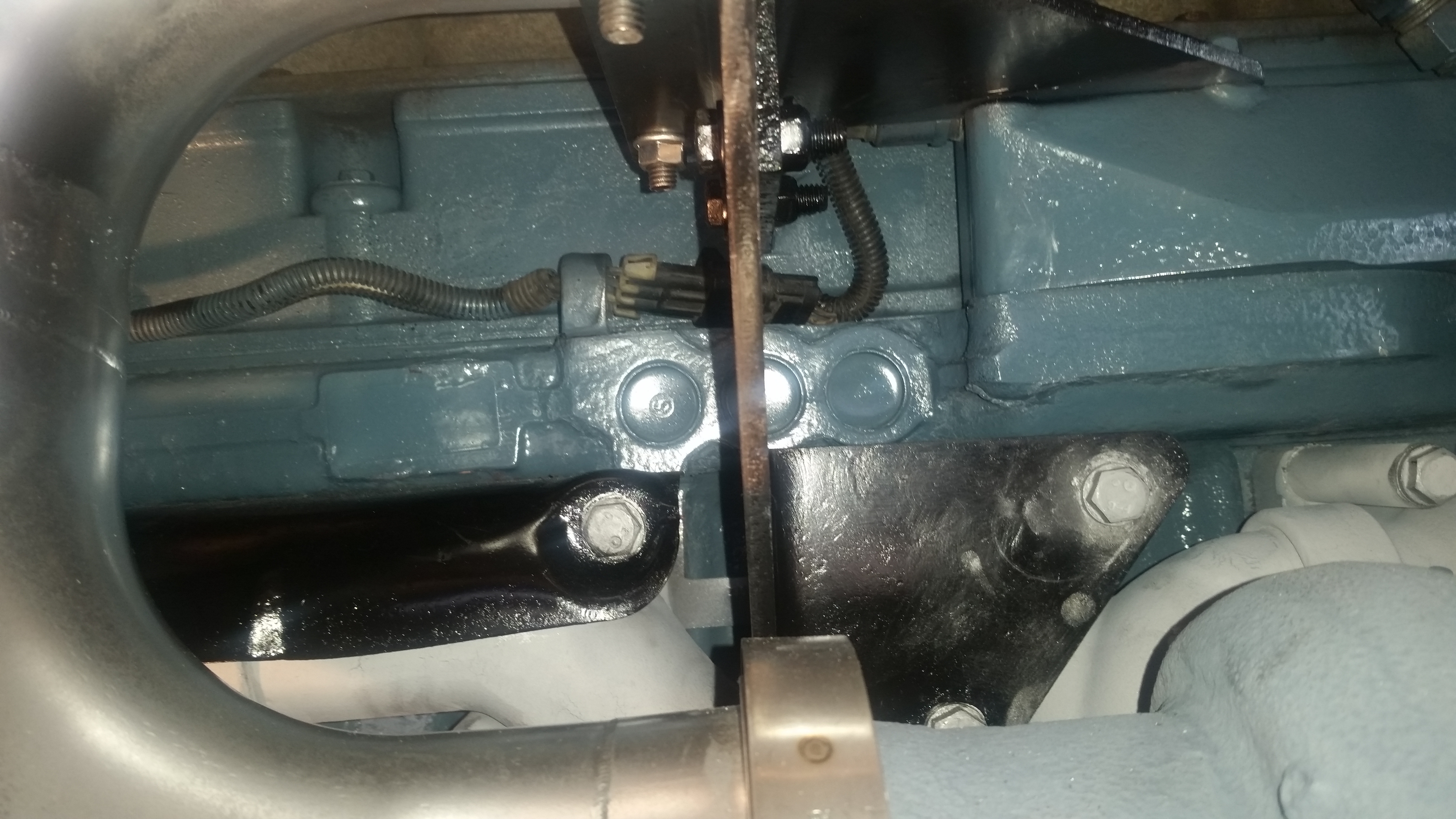

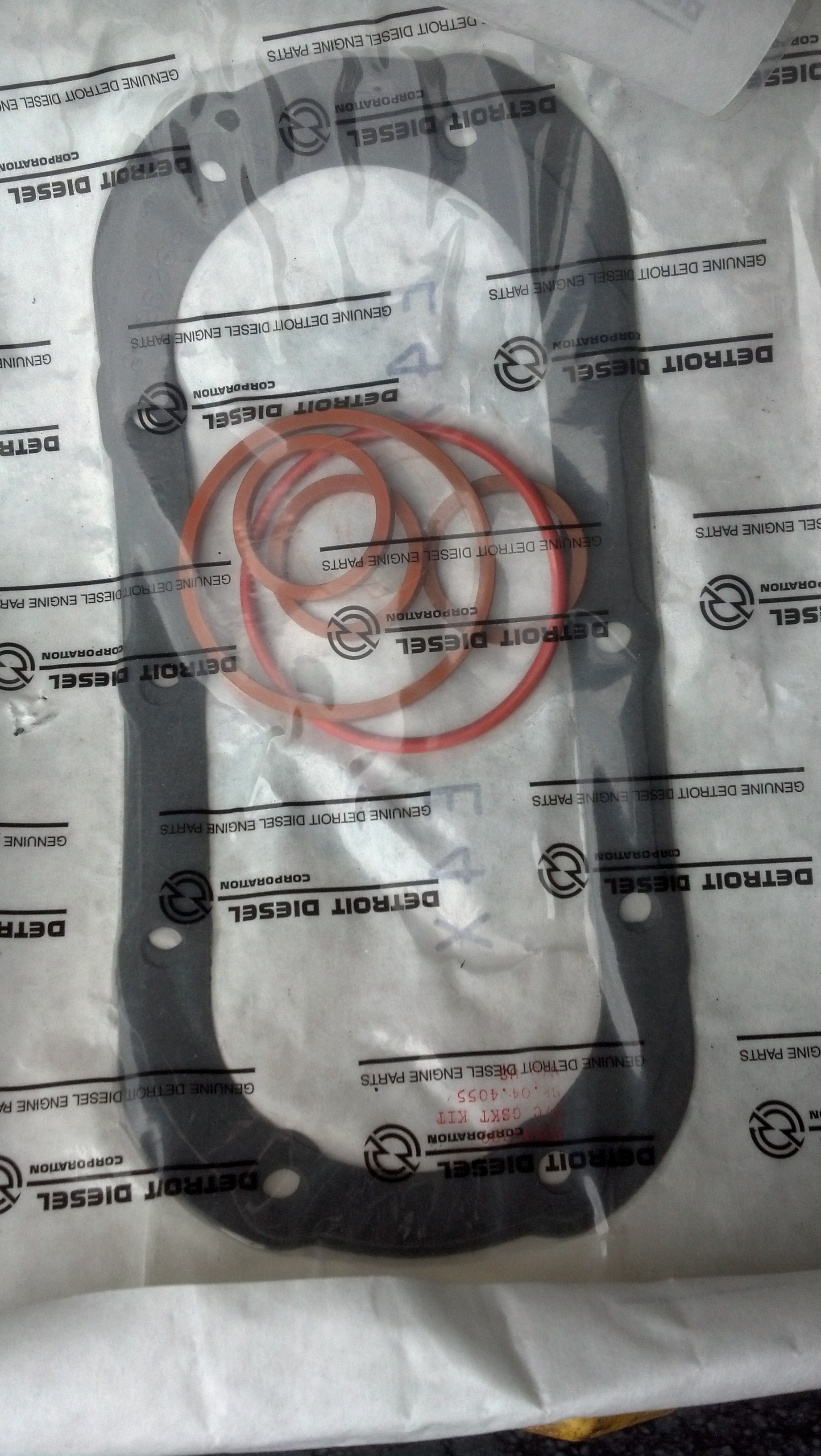

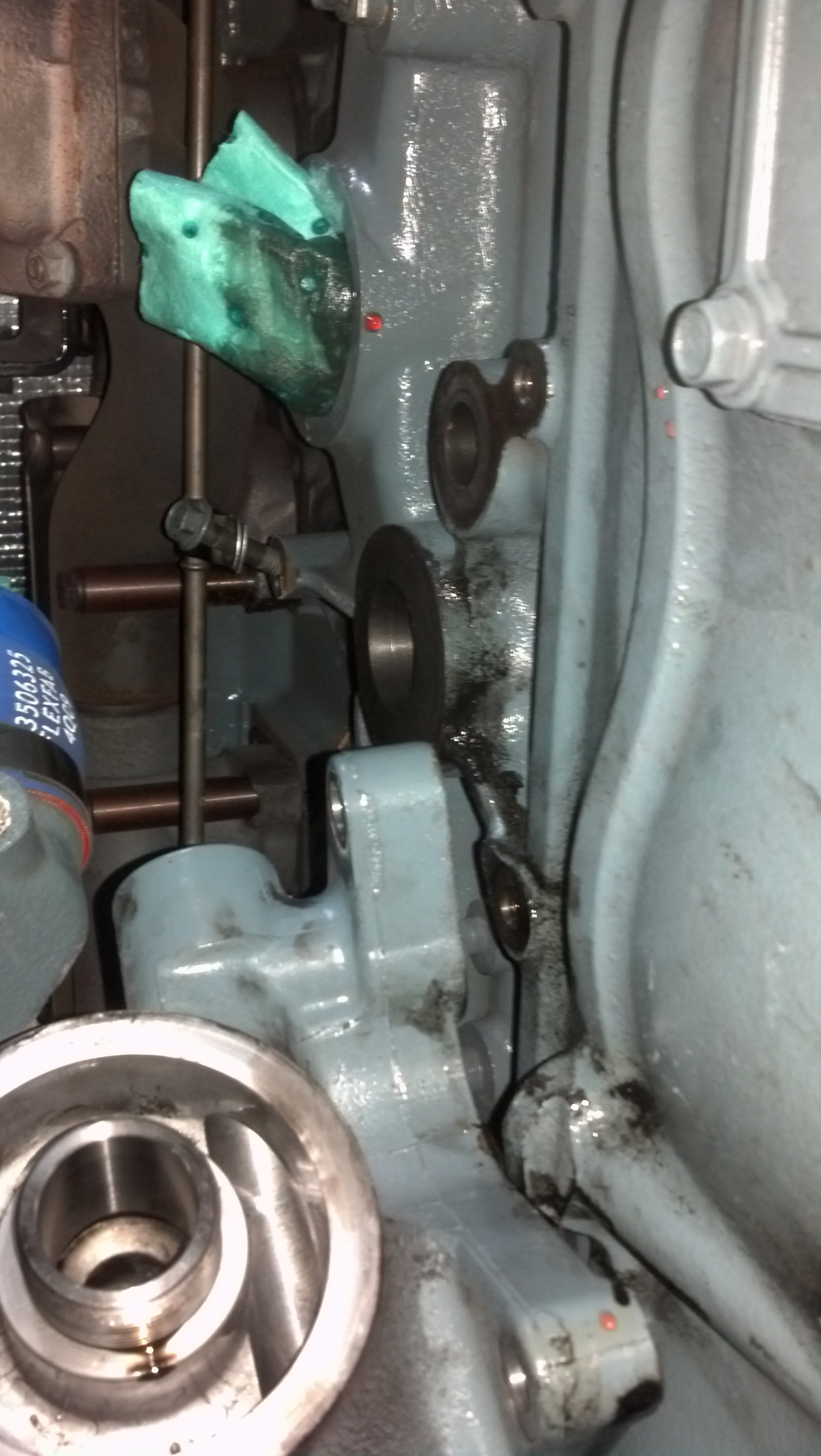

The oil cooler is prone to leaking, I have replaced the seals and gaskets on my S60. Also, while the radiator is out is a good time to check for exhaust manifold leaks. Black residue around a fitment will indicate a leak. I also replaced the manifold on my engine while I had the radiator out.


Attached File(s) Thumbnail(s)
İmage İmage

Chuck & Tela Millsap
2003 Prevost Marathon XLII
2000 LXi #2 S/S (Sold)
2004 M380 D/S (Sold)
2000 LXi #1 N/S (Sold
