NHTSA Motorcoach Roof Crush and Rollover Testing
09-15-2013, 23:13 (This post was last modified: 09-15-2013 23:32 by davidbrady.)
Post: #1
NHTSA Motorcoach Roof Crush and Rollover Testing
Here's a couple fascinating documents on NHTSA rollover standards and allowable roof crush in transit motorcoaches. Check out the g's exerted on the roof during contact with the ground. I've also added the documents to our Library under Document Library -> Theory:


.pdf  NHTSA 2009 SAE Motorcoach Roof Crush and Rollover Testing.pdf (Size: 4.54 MB / Downloads: 885)

.pdf  NHTSA 2009 SAE Motorcoach Roof Crush and Rollover Testing Discussion Paper.pdf (Size: 1.68 MB / Downloads: 888)




david brady,
'02 Wanderlodge LXi 'Smokey' (Sold),
'04 Prevost H3 Vantare 'SpongeBob'

"I don't like being wrong, but I really hate being right"
Find all posts by this user
Like Post Quote this message in a reply
09-15-2013, 23:59
Post: #2
RE: NHTSA Motorcoach Roof Crush and Rollover Testing
That reminds me of Rick Archie laying his Wanderlodge II on it's side, but without the windshields popping out. His wife had to kick hers out to get out of it.

Steve Gureasko
90 WBSA "Jus Chillin"
Ponchatoula, La.
Find all posts by this user
Like Post Quote this message in a reply
09-16-2013, 00:06
Post: #3
RE: NHTSA Motorcoach Roof Crush and Rollover Testing
Dayum!! 8G's!!!!!!!!! That's pretty extreme! Very interesting, to say the least. Good find!

John Mace
06 450LXi bigger bird
living in the wild hinterlands of the north
free to roam without the man getting me down
Find all posts by this user
Like Post Quote this message in a reply
09-16-2013, 09:47 (This post was last modified: 09-16-2013 10:32 by davidbrady.)
Post: #4
RE: NHTSA Motorcoach Roof Crush and Rollover Testing
From the "Discussion Paper":

"The FMVSS No. 220 test applies a uniformly distributed compressive load (equivalent to 1.5
times the unloaded vehicle weight of the bus), on the roof of the bus along its longitudinal
centerline using a 915 mm (3 feet) wide platen that is 305 mm (1 foot) shorter than the bus length.
The requirements are that the bus roof does not compress more than 130 mm (5.118 inches) and
the emergency exits remain operable. It was determined that the test protocol could be adapted to
test motorcoaches with only minor changes to the test device. However, neither the MCI nor the
Prevost bus was able to meet the 1.5 times the unloaded vehicle weight (UVW) required for
school buses. The MCI bus was able to achieve 0.91 x UVW prior to the front of the bus
collapsing and hydraulic test device running out of stroke. The Prevost bus was able to achieve
1.17 x UVW prior to the front of the bus collapsing and hydraulic test device running out of
stroke. It should be noted that neither of these buses were required or designed to meet the
FMVSS No. 220 requirements".


Methinks their performance in the School Bus crush test, FMVSS No. 220, is pretty remarkable given that they weren't designed to meet this standard. :-)

The unloaded vehicle weight (UVW) for the MCI is 27853# and for the Prevost 29270#. The UVW of a 36' Blue Bird All American School Bus is 18880#, from here, (or 20977# if we extrapolate this weight out to a 40 footer). For a 40' school bus to pass FMVSS No. 220 it must support 1.5*20977= 31466#. The MCI supported 0.91*27853 = 25346# and the Prevost 1.17*29270 = 34246#. (This doesn't say what the All American can support before crushing excessively, just what it needs to).

david brady,
'02 Wanderlodge LXi 'Smokey' (Sold),
'04 Prevost H3 Vantare 'SpongeBob'

"I don't like being wrong, but I really hate being right"
Find all posts by this user
Like Post Quote this message in a reply
09-16-2013, 14:49
Post: #5
RE: NHTSA Motorcoach Roof Crush and Rollover Testing

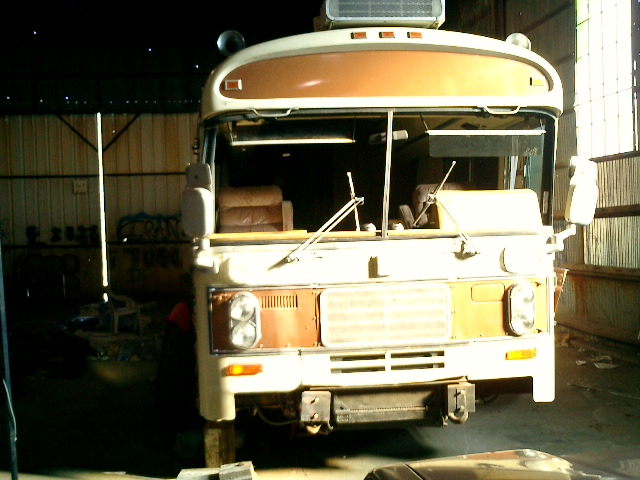

─░mage Attached is a picture of Rck Archie's coach, it did a lot better than the one used in the demo.
